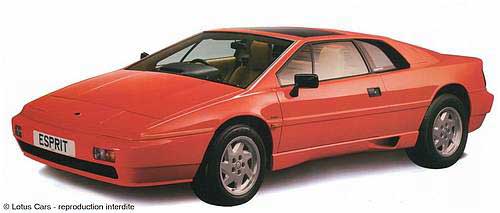

The new-style car, coded X180 at Hethel, was launched in October 1987, with deliveries beginning almost at once. Mechanically the same as the Giugiaro styled Turbo Esprit, other than one major item, the transaxle. In place of the previous Citroen unit, Lotus now fits the transmission from the Renault GTA. This gives slightly higher gearing with a 3.88:1 final drive ratio. The gearchange is also Renault-derived. The new gearbox has meant a change in the rear brakes. These have been moved to a more conventional outboard mounting on the cast alloy hub carriers. Brake cooling is improved, but unsprung weight is increased. Solid discs are used at the rear, while at the front ventilated discs are employed.

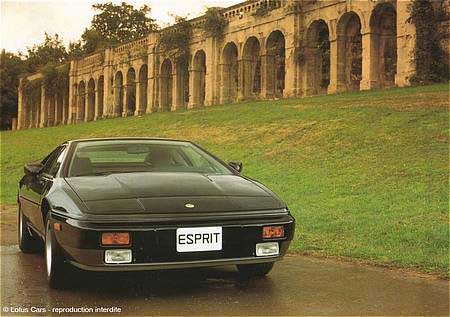

Two types were available on it's launch the Turbo HCPI for ‘federal’ markets. With 215bhp, Bosch injection and old-type Citroen gearbox and a Turbo for other markets, also with 215bhp, Dellorto carbs, more torque, and Renault gearbox. The Citroen gearbox was dropped for the federal market in 1988.

Inside the car there was significantly more legroom and passenger space in general. Instruments and the panel were new, there was a better ventilation system.

Peter Stevens

Esprit Production Figures
1976-2004



SPECIFICATION

ENGINE
Longitudinally, mid, rear-wheel drive
Head/ block al. alloy/al alloy. 4 cylinders in line.
Bore 95.3mm, stroke 76.2mm,
capacity 2174cc.
Valve gear 2ohc. 4 valves per cylinder.
Compression ratio 80 to 1.
Electronic breakerless ignition.
Twin Dellorto DHLA 45 carburettors
Garrett T3 turbocharger.
boost pressure 9.5psi (0.67bar).
Max power 215bhp (PS-DIN) (160kW ISO) at 6000rpm.
Max torque 2201b ft (298 Nm) at 4250rpm.

TRANSMISSION
5-speed manual
Gear Ratio
Top 0.82
4th 1.03
3rd 1.38
2nd 2.05
1st 3.36
Final drive ratio 3.88:1.

SUSPENSION
Front, independent, double wishbone. coil springs, telescopic dampers, and-roll bar.
Rear, independent, upper and lower transverse link with radius arms, coil springs, telescopic dampers, anti-roll bar.

STEERING
Rack and pinion.
Steering wheel diameter l4ins,
2.9 turns lock to lock.

BRAKES
Front l0.1ins(258mm) dia ventilated discs.
Rear l0.8ins (275.9mm) dia discs.
Vacuum servo.

WHEELS
Al alloy,7ins rims front. 8ins rear.
Goodyear Eagle NCT tyres
size 195/60VR15 F, 235/60VR15 R.

ACCELERATION FROM REST

Standing mile: 13.7secs, 103mph
standing KM: 25.0secs, 129mph

FUEL CONSUMPTION
Overall mpg: 19.6 (14.4 litres/100km) 4.3 miles/litre Grade of fuel: Premium, 4-star (96 RM) or unleaded (95RM) Fuel tank: 18.0 Imp galls (82 litres) Mileage recorder 4 per cent long

CLUTCH
Pedal 15lb; Travel: 6.O ins

WEIGHT
kerb 3052lb/1386kg distribution % F/R 51/49 Test 3434lb/l559kg Max payload 501lb/227kg

COSTS
Prices Total (in GB) £29.950.00 Road tax. delivery, no plates £560.00 Total on the Road £30,510.00 Insurance group 9

EXTRAS (fitted to test Car)
Air conditioning £1105.00 Full leather trim £660.00 Metallic paint £620.00 Radio-cassette, speakers £870.00 Total as tested £33765.00

WARRANTY
12 months/unlimited mileage. 8-years anti corrosion
